Taco TacoFlow 2 ELINK 25-60/130 1 1/2″

1006.04233.000

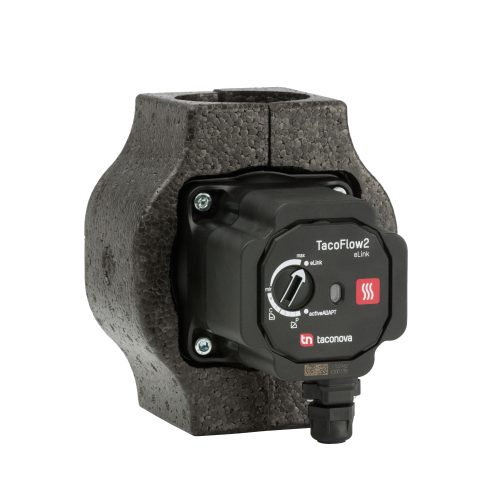

De Taconova circulatiepompen zijn ontwikkeld volgens de laatste energie eisen en zijn zeer efficiënt en zuinig waardoor de energie kosten tot een minimum beperkt worden. De Tacoflow2 Adapt pomp is geschikt voor verwarmingsinstallaties en heeft een EEI van = 0,20. De pomp met adapt functie kan zich automatisch aanpassen aan de vraag van het systeem. Naast de automatisch functie kunnen er ook een aantal andere instellingen geselecteerd worden. De Adapt pompen worden standaard met isolatiebox geleverd.

Product downloads

Deel dit product met anderen

Specificaties
Toebehoren

Productinformatie

  • Productnummer
    1006.04233.000
  • Product omschrijving
    Taconova TacoFlow 2 ELINK 25-60/130 1 1/2"
  • GTIN
    08720153677004
  • Beschikbaar
    Ja
  • Conditiegroep
    1006
  • Merk
    Taconova
  • Serie
    TacoFlow2
  • Type
    Elink

Product classificatie

  • Class
    Circulatiepomp (medium gekoeld)
  • 2G-netwerk standaard
    Nee
  • 4G-netwerk standaard
    Nee
  • 5G-netwerk standaard
    Nee
  • Aansluiting
    Buitendraad cilindrisch BSPP-G (ISO 228-1)
  • Aansluiting inlaatzijde
    Buitendraad cilindrisch BSPP-G (ISO 228-1)
  • Aansluiting perszijde
    Buitendraad cilindrisch BSPP-G (ISO 228-1)
  • Aansluitmaat pomphuis
    1 1/2"
  • Aansluitspanning
    1 x 230 V
  • Aansluitstandaard inlaatzijde
    ISO 228-1
  • Aansluitstandaard perszijde
    ISO 228-1
  • Aantal fasen
    1
  • Beschermingsgraad (IP)
    IP44
  • Bluetooth-netwerk standaard
    Ja
  • Breedte 1
    90mm
  • Communicatiebus
    Geen
  • Druktrap klasse
    PN 10
  • Dubbelpomp
    Nee
  • Elektrische aansluiting
    Aansluitklemmen
  • Energie Efficiëntie Index (EEI)
    0.2
  • Flensvorm ovaal
    Nee
  • Frequentie
    50/60 Hz
  • Inbouwlengte
    130mm
  • Interface pulsbreedtemodulatie (PWM)
    Nee
  • Interface pulsteller
    Nee
  • Interface signaal 0-10 V / 2-10 V
    Nee
  • Interface signaal 0-20 mA / 4-20 mA
    Nee
  • Interface signaal PT100 / PT1000 / PTC
    Nee
  • Isolatieklasse volgens IEC
    H
  • Kwaliteitsklasse pomphuis
    Gietijzer EN-GJL-200 (GG 20)
  • Materiaal behuizing
    Gietijzer
  • Materiaal pomphuis
    Gietijzer
  • Materiaal waaier / pompwiel
    Kunststof (vervallen)
  • Materiaalkwaliteit
    Gietijzer EN-GJL-200 (GG 20)
  • Max. bedrijfsdruk
    10bar
  • Max. mediumtemperatuur (continu)
    110°C
  • Mediumtemperatuur (continu)
    2°C - 110°C
  • Met communicatie-interface CANOpen
    Nee
  • Met communicatie-interface KNX
    Nee
  • Met communicatie-interface PROFIBUS
    Nee
  • Met communicatie-interface RS-232
    Nee
  • Met communicatie-interface RS-485
    Nee
  • Min. mediumtemperatuur (continu)
    2°C
  • Nom. diameter
    DN 25
  • Nom. diameter aansluiting inlaatzijde
    2" (50)
  • Nom. diameter aansluiting perszijde
    2" (50)
  • Nom. spanning
    230V - 0V
  • Nom. stroom
    0.33A
  • Omgevingstemperatuur
    0°C - 40°C
  • Ondersteunt protocol voor BACnet IP
    Nee
  • Ondersteunt protocol voor BACnet MS / TP
    Nee
  • Ondersteunt protocol voor CAN / CANOpen
    Nee
  • Ondersteunt protocol voor EtherNet/IP
    Nee
  • Ondersteunt protocol voor KNX
    Nee
  • Ondersteunt protocol voor LIN Bus
    Nee
  • Ondersteunt protocol voor LON / LONWorks
    Nee
  • Ondersteunt protocol voor Modbus RTU
    Nee
  • Ondersteunt protocol voor Modbus TCP
    Nee
  • Ondersteunt protocol voor PROFIBUS
    Nee
  • Ondersteunt protocol voor PROFINET IO
    Nee
  • Opgenomen motorvermogen (P1)
    42kW
  • Opvoerhoogte bij nom. debiet
    60kPa
  • Potentiaalvrij schakelcontact
    Nee
  • Radiostandaard WLAN 802.11
    Nee
  • Signal and communication interface
    Geen
  • Standaard radio 2G / 3G / 4G
    Nee
  • Toerenregeling motor
    Ingebouwd
  • Type toerenregeling
    Traploos
  • With communication interface BACnet MS/TP
    Nee
  • With communication interface BACnet/IP
    Nee
  • With communication interface LIN (Local Interconnect Network)
    Nee
  • With communication interface LON-Works
    Nee
  • With communication interface PROFINET
    Nee
